PE-MVE – the space-saving stationary breathing air compressor which ensures quiet operation at an attractive price!
Super-Silent cladding as standard: With low noise level for use in working environments where noise is a key concern
Fully automatic, easy-to-use compressor control: BHW CONTROL
Integrated filling device: 2 non-kinking filling hoses in the standard scope of supply
Compact dimensions: for installation wherever space is at a premium

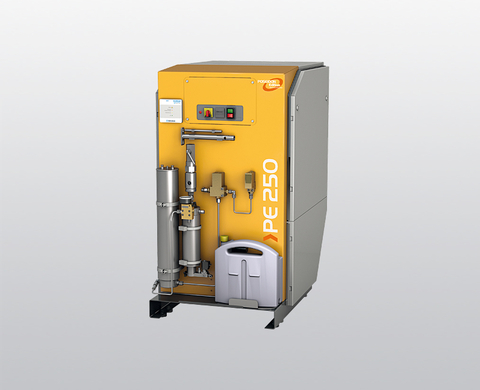

The PE-MVE from BAUER is the compact complete solution in a vertical format for all applications requiring medium delivery rates. Equipped with noise insulation housing as standard, the PE-MVE is ideal for use in environments where noise is a key concern and for customers who need reliable and durable service combined with low running costs.
What's more, the high-pressure compressors are already equipped with an automatic condensate drain and easy-to-use BHW CONTROL, which has a fully automatic mode for filling storage bottles.
All the information you need at your fingertips!
IK 120 compressor block
The BAUER IK 120 series compressor block has been designed for the most demanding professional applications. Dimensioned for more than 30,000 operating hours, it has proven its worth in thousands of application scenarios. Read more
The Super-Silent cladding, which is installed as standard, impresses with its low noise level for working environments in which noise is a key concern and flexible installation options.
P 31 filter system
When used in conjunction with original BAUER filter cartridges, the P 31 filter system with integrated oil and water separator and pressure retention check valve can be relied upon for breathing air treatment conforming to DIN EN 12021¹. A type-tested and sealed final pressure safety valve enables particularly high levels of operational safety to be achieved. 600 m³ of air can be treated.
¹ If the units are maintained and installed correctly as described in the operating instructions or user manual and if the concentration of CO2 in the intake air does not exceed the values specified in the applicable standard for breathing air.
The electric control with additional monitoring electronics switches the compressor off automatically when the final pressure is reached in the system, measures operating hours, displays the current operating status and is equipped with a phase monitoring.
Automatic condensate drain incl. final pressure shutdown and control conforming to European CE standard
The automatic condensate drain is controlled via the electronic control system. The condensate produced can be collected in a condensate tank for disposal in an environmentally-friendly way.
High-quality UNIMAM high-pressure filling hoses made from food-safe and long-life hose material make for flexible and safe handling. Swivel hose connections enable the filling valve to be connected to the breathing air cylinder quickly, easily and safely.
The integration of a motor rocker with V-belt tensioner means that the tension of the V-belt no longer has to be adjusted.
SECURUS is a direct asset to your safety!
SECURUS is an electronic filter cartridge saturation control which continuously monitors the ability of the final filter cartridge to dry breathing air in accordance with the standard EN 12021:2014. Read more
P 42 filter system
When used in conjunction with original BAUER filter cartridges, the P 42 filter system with additional oil and water separator and pressure retention check valve can be relied upon for breathing air treatment conforming to DIN EN 12021¹. A type-tested and sealed final pressure safety valve enables particularly high levels of operational safety to be achieved. 1550 m³ of air can be treated.
¹ If the units are maintained and installed correctly as described in the user manual and subject to the BAUER AERO-GUARD being used if CO2 concentration in the intake air exceeds prescribed standard values.
Fully automatic compressor control
The compressor control is also available in a fully automatic version. As well as switching off automatically when the final pressure is reached, the compressor also restarts by itself as soon as the pressure falls below a specified minimum value. Ideal for use in storage mode.
Intermediate pressure gauge kit
The intermediate pressure gauges show the operating pressure of the individual compressor stages. This information about the pressure is used to check the corresponding stage valves (inlet and outlet) for leaks so that potential faults can be detected quickly. The intermediate pressure gauges are installed inside the compressor housing.
Using the AERO-GUARD reduces the CO2 content of the breathing air to approximately one-third of the intake value. The constantly increasing levels of CO2 concentration in the air resulting from unfavourable environmental influences are making it more and more difficult for the operators of filling stations to be sure of achieving compliance with legally binding maximum limits for CO2. With AERO-GUARD the operator is always on the safe side! Read more
External BAUER filling panels
Depending on requirements, filling panels are supplied with filling hoses or lever filling valves with 4, 6 or 10 filling valves. A stainless steel design can be provided as an option.
BAUER high-pressure storage
BAUER high-pressure storage system for optimum operation of the compressor unit. Recommended for high collection rates and the immediate availability of breathing air. Read more
All electric motors are available with other voltages and frequencies on request. A voltage range from 110 to 690 V at 50/60 Hz is covered.
|Charging rate ¹||Number of |
|Max. operating |
|Motor and power||Dimensions |
L × W × H
|PE 250-MVE||250||15||9||3||350||4780||1,450||Three-phase motor |
400 V, 50 Hz ²
|5.5||104 × 75.5 × 132|
|PE 300-MVE||300||18||10||3||350||4780||1,800||Three-phase motor |
400 V, 50 Hz 2
|7.5||104 × 75.5 ×132|
¹ Measured with cylinder filling (10 l) from 0 to 200 bar, ± 5%
² Connecting plug configuration: 16 A
